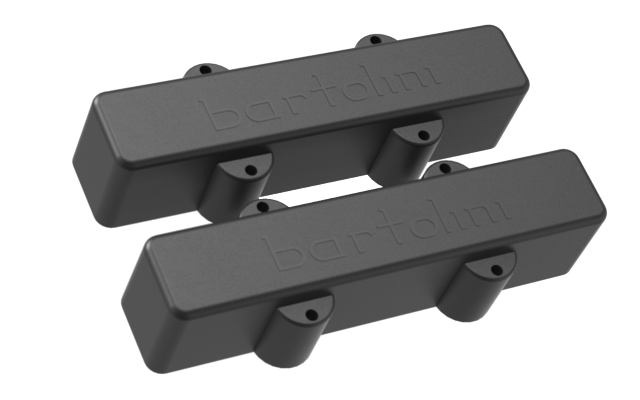

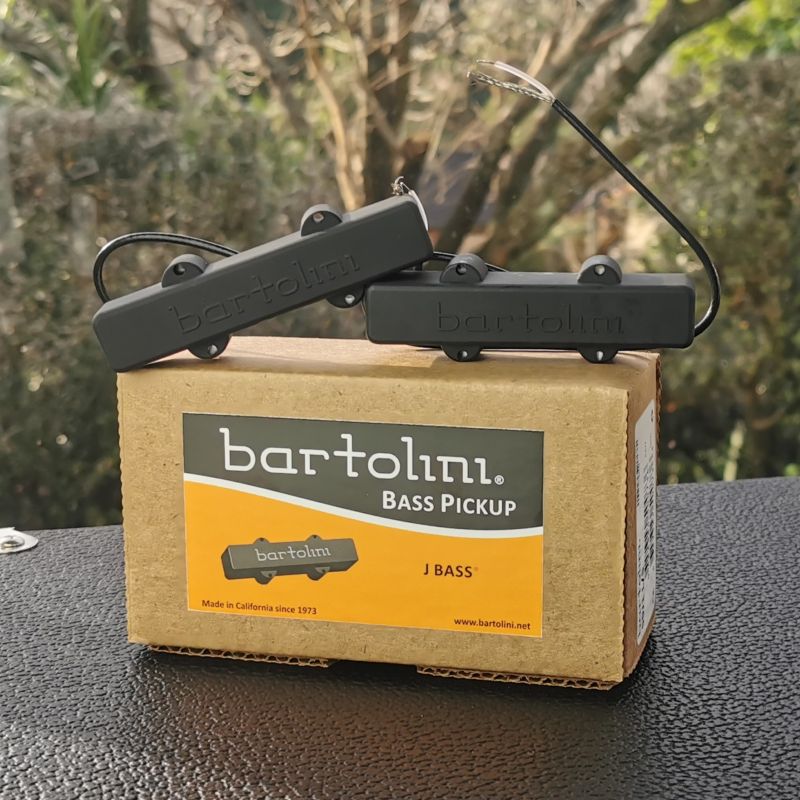

Bartolini Original Dual Coil 5 Pickups

Bartolini Original Dual Coil 5 Pickups deliver a full & warm vintage tone with plenty of 60’s lowend but with no hum. The Dual inline jazz bass pickups from Bartolini are totally hum-cancelling pickups with no need for worrying about your string spacing. Due to the in-line coil design you have an even response on all string & with the sealed casing, no unwanted noise from hitting your strings on the pickups.

$347.00 excl GST

2 in stock (can be backordered)

Bartolini Original Dual Coil 5 Pickups

SKU BART-59J-L/S Category Brand:

Bartolini Original Dual Coil 5 String Pickups

Bartolini Original Dual Coil 5 Pickups deliver a full & warm vintage tone with plenty of 60’s lowend but with no hum. The Dual inline jazz bass pickups from Bartolini are totally hum-cancelling pickups with no need for worrying about your string spacing. Due to the in-line coil design you have an even response on all string & with the sealed casing, no unwanted noise from hitting your strings on the pickups.

The original Bartolini design gives you the timeless tone that started it all – full and warm for that vintage voice you’ve been craving, enhancing the natural voice of your bass. These dual coil inline pickups are hum-cancelling even when only playing the neck or bridge pickup, so they are well suited for studio or stage. They have a blade core design, so you don’t have to worry about string alignment. Original Barts bring out your voice, low and clear.

History of the Bartolini Original Dual Coil 5 Pickups

In the early ‘70s, Bill Bartolini leveraged his deep knowledge of acoustics to create pickups that produce the most natural, musical voice from the instrument. He added shielding to block radio signals and noise. He developed a method of sealing, isolating, and stabilizing the coils so they could be encapsulated in epoxy to eliminate “microphonics” – the nasty noise you get when you touch typical pickups. You can view the full range of Bartolini Pickups & Preamps in this link.

Bartolini Original Dual Coil 5 Pickups Technical Details

Coil Structure:
Dual Inline Hum-killing
Cable Type:
Shielded Coaxial Hot Core
Magnetic Circuit:
2 types of carbon steel powered by ceramic (ferrite) magnets
Opposite polarity for bass and treble coils for neck and bridge pickups.

59J-S1 – Neck

  • DC Resistance: ~6.7KΩ
  • Resonant Frequency: ~5.7KHz
  • Sensing Width: 2.83″ [72mm] Max 2.32″ [59mm] Min

59J-L1 – Bridge

    • DC Resistance: ~7.4KΩ
    • Resonant Frequency: ~4.9KHz
    • Sensing Width: 2.95″ [75mm] Max 2.36″ [60mm] Min

Fast Delivery of Guitar Parts throughout NZ & Australia

All our Bartolini Pickups are located at our store: Unit T, 241 Rosedale Road, Albany, Auckland NZ. You can come in and talk with me about your project or collect the parts you need in person. if you are outside of Auckland, all online orders are sent quickly on track and trace couriers. reaching most people in NZ overnight. If you are one of our customers in Australia. Our standard shipping time is 5-7 days. If you need them in a hurry, and it happens. Choose our express Fedex service that will get your order to within 2 days. often overnight.

Tone Merchants are very proud to be a New Zealand dealer for Bartolini Pickups & Preamps. If you cannot find what you are looking for on our website. The Contact Us and we can arrange for your pickups to be made & delivered with our regular orders at Bartolini.

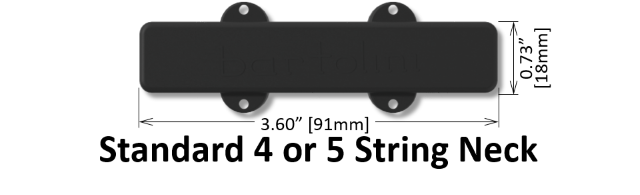

Standard Short J-Bass (-S and -SB)
3.6″ [91.4mm] Long,
0.73″ [18.5mm] Wide,
0.82″ [20.8mm] Thick + 0.11″ [2.8mm] Cable
4 Standard J Pickup Mounting ears for your #3 or #4 screws

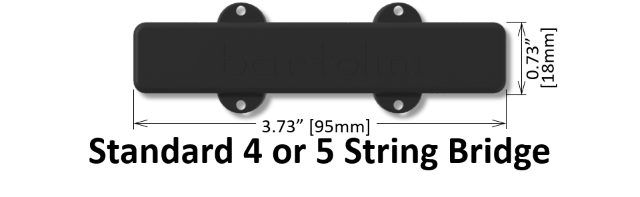

Standard Long J-Bass (-L and -LN)
3.73″ [94.7mm] Long,
0.73″ [18.5mm] Wide,
0.83″ [21.1mm] Thick + 0.11″ [2.8mm] Cable
4 Standard J Pickup Mounting ears for your #3 or #4 screws
